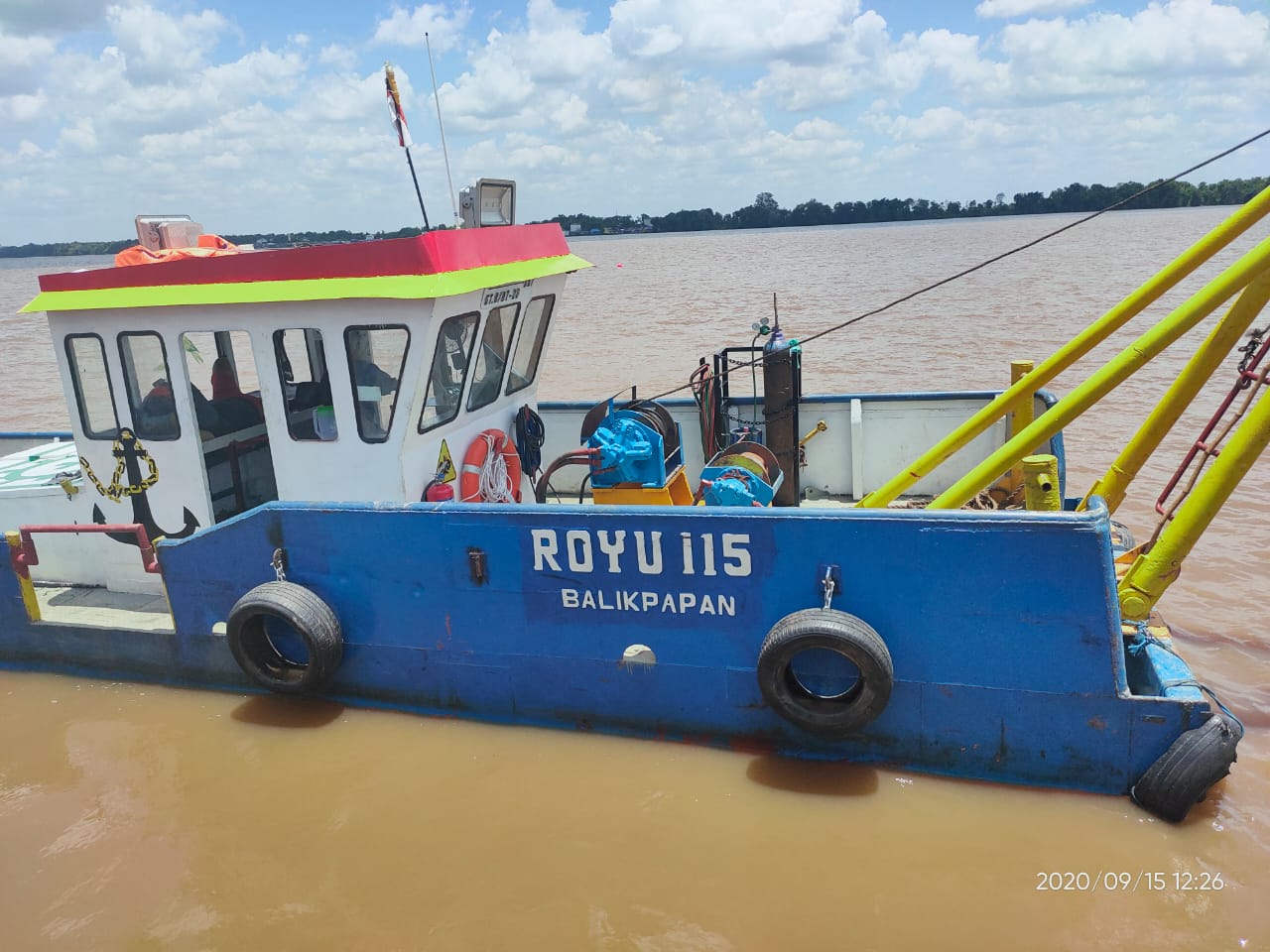

ROYU 115

Ship Particular
Ship Name :	Banter Prima 02
Type of Ship :	Cutter Suction Dredger
Pricipal Dimension
Length Over all / LOA:	34,40 m
Breadth / lebar:	8,4 m
Lenght of water line / LWL:	23 m
Depth / tinggi main pontoon:	2,2 m
Draft max:	1,1 m
Max. Dredging depth:	-15 m
Suction & Discharge diameter pipe:	400mm & 400mm
Class:	Non Class
Dry Weight:	+/- 70 tons
Kapasitas keruk solid:	150~300m³/h
Kapasitas pompa mixed:	1500 m3/jam
Dredging Features
Max. Dredging depth:	-10m upto -14m with add extension
Min. Dredging depth:	1,5 m
Soil Type:	Sandy soil with sporadic debris
Dredging Instalation
Dredge pump type:	Centrifugal Pump 14/12 T-G
Diameter suction/discharge pipe:	16"/16"
Cutter shaft power max:	100 HP
Cutter type:	Crown model (with changeable chisels)
Cutter diameter:	1.100 mm
Engine Instalation
Dredge pump diesel:	Caterpilar 3508 DITA
Continous power rating:	1000BHP@1800rpm
Hydraulic installation:	Driving Cutter, winches and cylinder
Electrical installation:	24 V DC and 230/400 V AC, 35.4 kVa
Tank Capacities
Fuel Oil Tank / BBM:	7000 Liter
Fresh Water Tank:	5000 Liter
Deck Machinery
Ladder hoisting:	Hydraulic winch, 80 Kn, 0-15 m/min
Side wire winches (2x):	Hydraulic winch, 80 Kn, 0-15 m/min
Spuds (2x):	Diameter Spud Pipe 400 mm / 16", Length 18 m
Spud hoisting:	Hydraulic cylinder, stroke 1,5 m
Anchors and wire ropes:	Anchors, 2@500KG Side winch wires, gantry wires, spuds slings ,spuds hoisting wires, mooring ropes to be supplied and fitted with dredger
Operating Cabin Devices:	Winches, Spuds, cutter actuator Chair Compass Electric Wiper Glass Pressure gauge Hydraulic cutter and Winch Vacum & Pressure gauge Dredge pump dischage and Suction Engine ME Monitor Lighting Control Loudspeaker Horn
Standard Accessories and Tools:	2 Fire Extinguiser CO2 @5kg and 2 Dry Powder@5kg 2 Life buoy, 4 life jacket Tools set Asembly wire and hook sets Cathodic protection type Zinc Anode
